Heavy Duty Battery Bus Bar Terminal Block 500A Distribution 2X 3/8" (M10) 4X 5/16" (M8) Post Busbar Connector
Original Price72.77
Sale Price$ 54.58
Shipping Fee0.00

Buy Now Add to Cart
Product Description
item
Heavy Duty Battery Bus Bar Terminal Block 500A Distribution 2X 3/8" (M10) 4X 5/16" (M8) Post Busbar Connector
Model Number
BB500-T6M8X4M10X2-RB
Continuous Rating Voltage Max
500A 300V AC/48V DC
Type
Screw
Terminal Studs
M8 (5/16") * 4+M10（3/8"）*2
Max Voltage
300V AC, 48V DC
Max Continuous Amperage
500A DC
Material of Plate
6mm Pure Copper Plate
Base Material
UL94-VO Rated,Glass Reinforced Thermoplastics

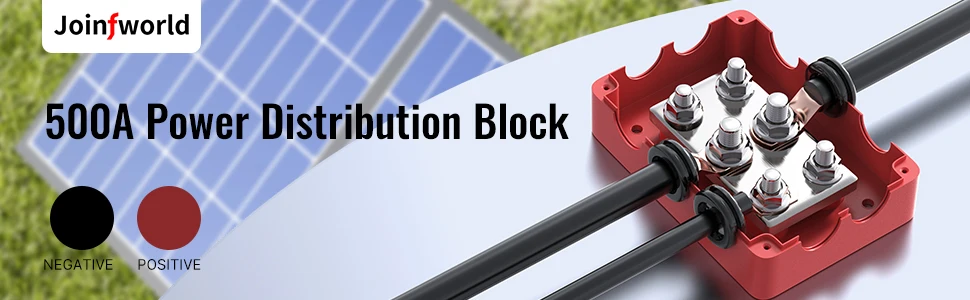

500A Power Distribution Block Box
* 500A Heavy Duty - The 12V Bus Bar Box rated 500A, besides, this power bus bar Junction block can work with MAX 48V DC & 300V AC.

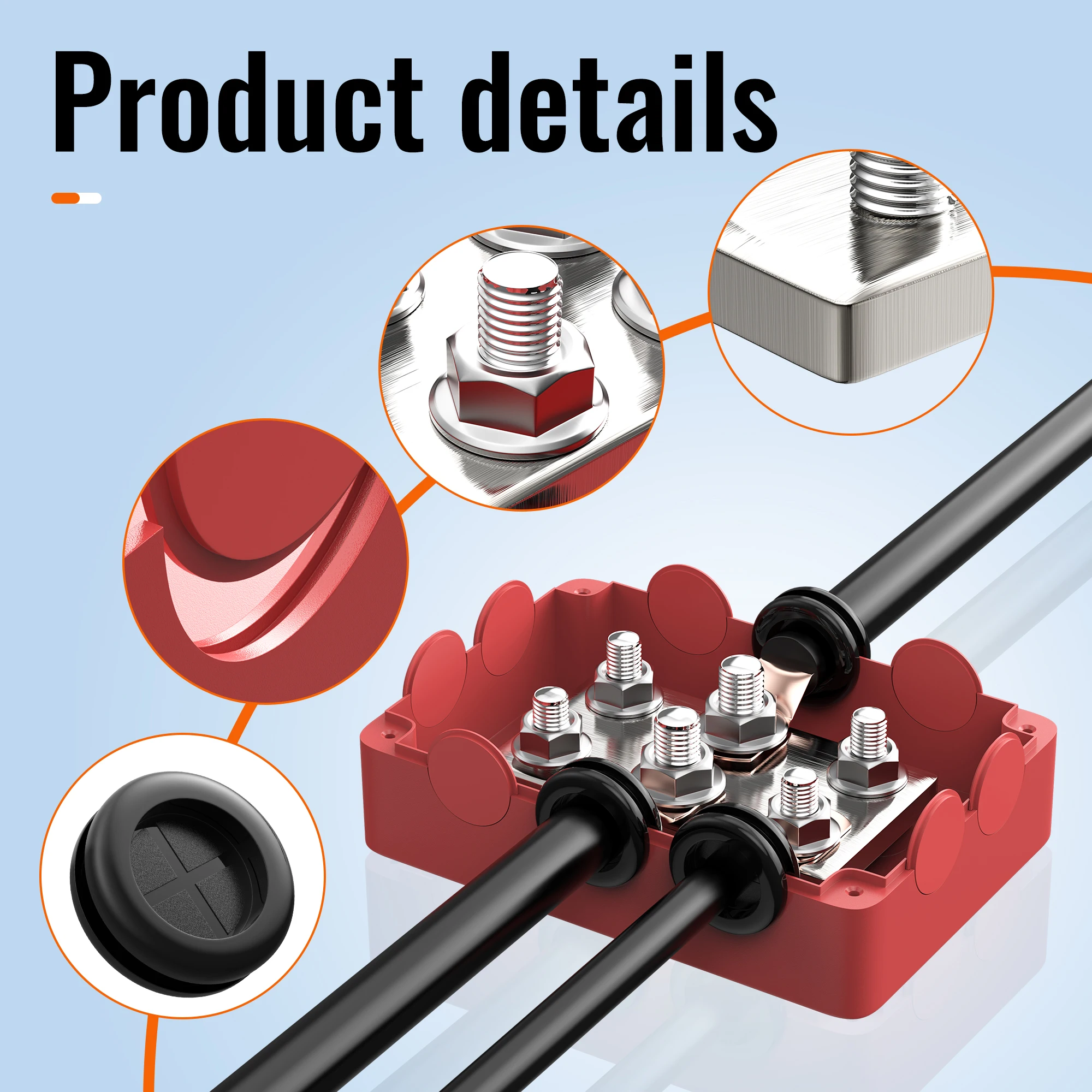

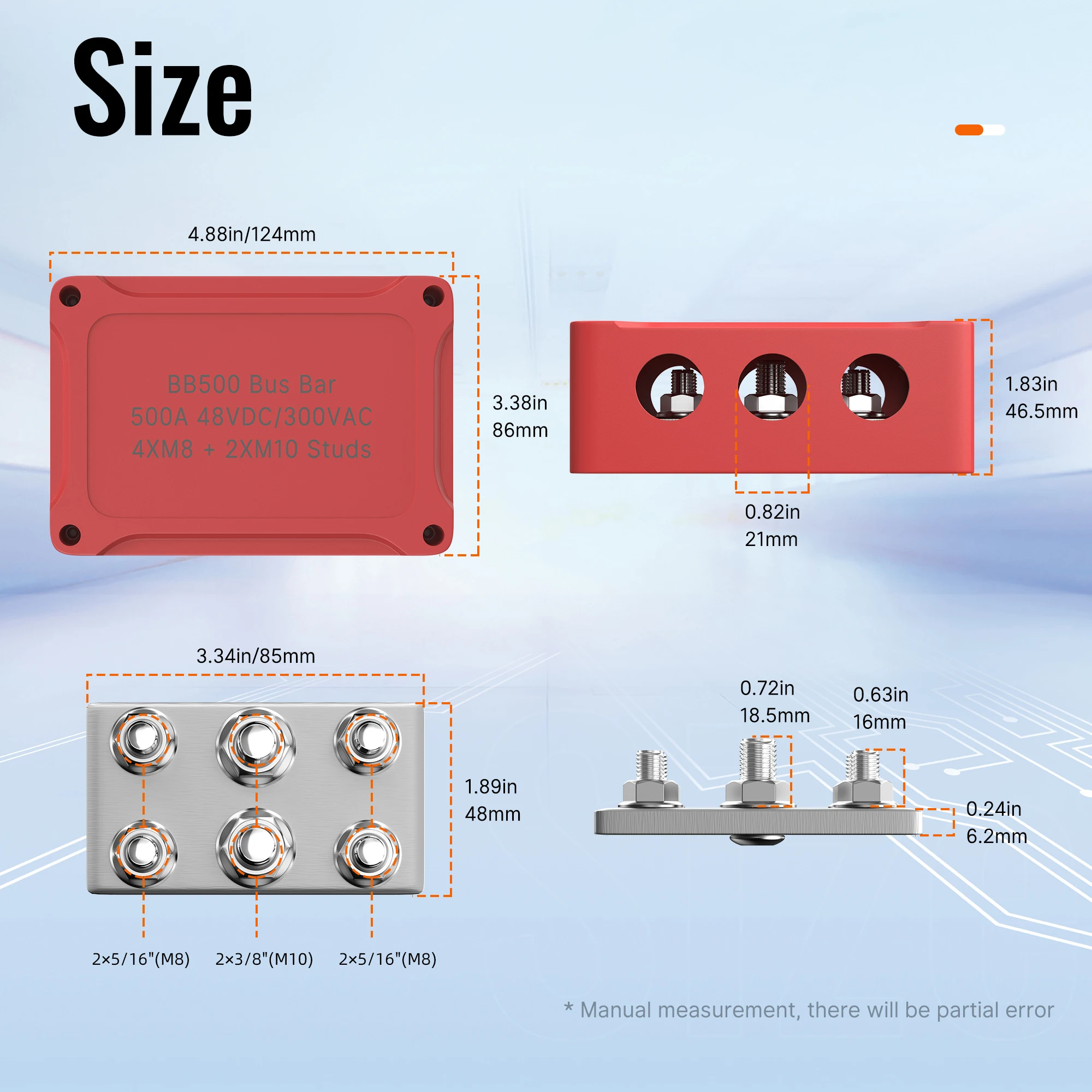

* High Quality - The Bus Bar Terminal Block with 5.4" x 2.7" x 1.8" Outer Size, Copper Nickel Plated Plate with Stainless Steel Studs and Nuts. Red Positive Busbar and Black Negative(Ground) Busbar as a pair.

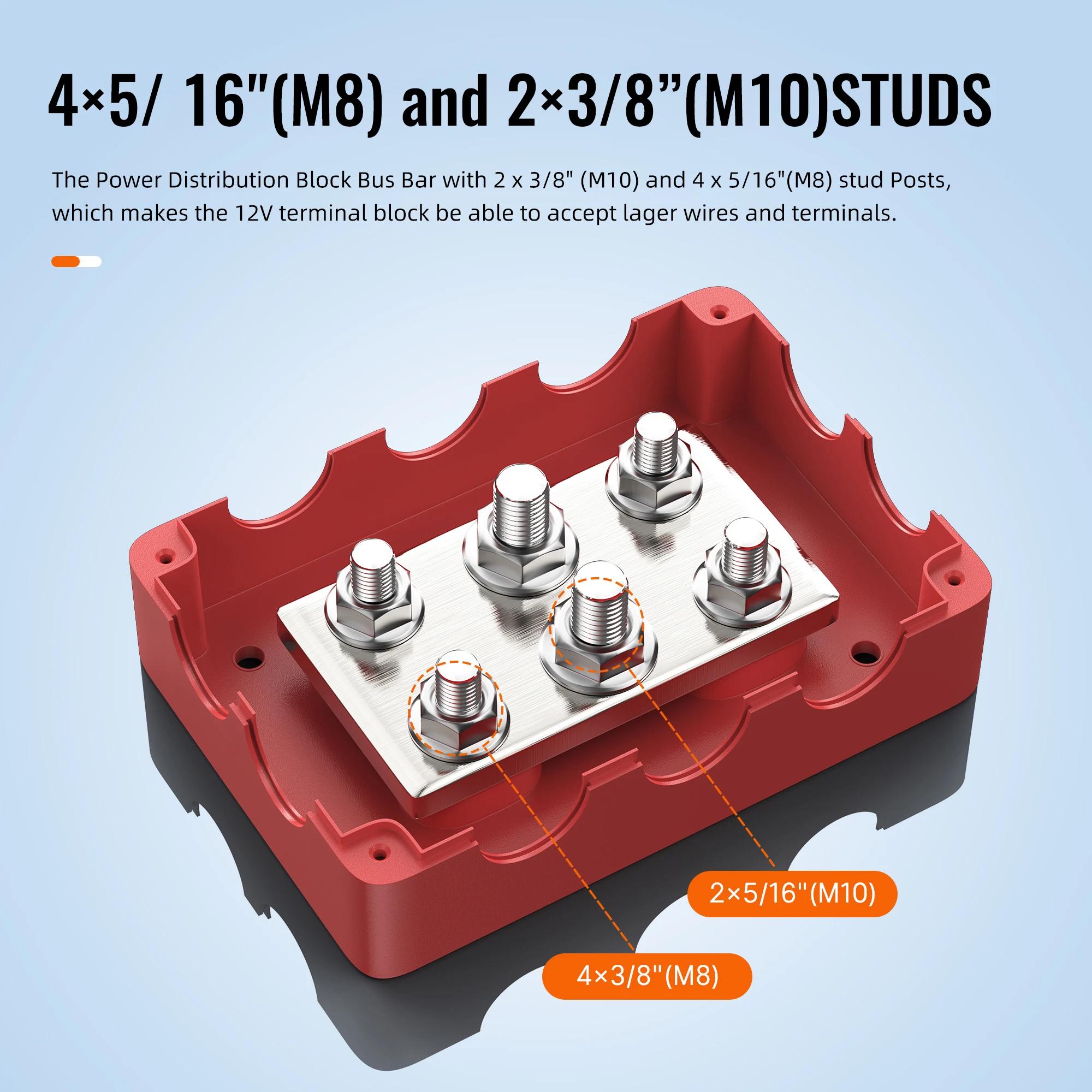

* 3/8"&5/16" Studs - The Power Distribution Block Bus Bar with 2 x 3/8" (M10) and 4 x 5/16"(M8) stud posts, which makes the 12V terminal block be able to accept 4/0 Gauge wires and terminals. The size of the terminal can be selected, which is more convenient.

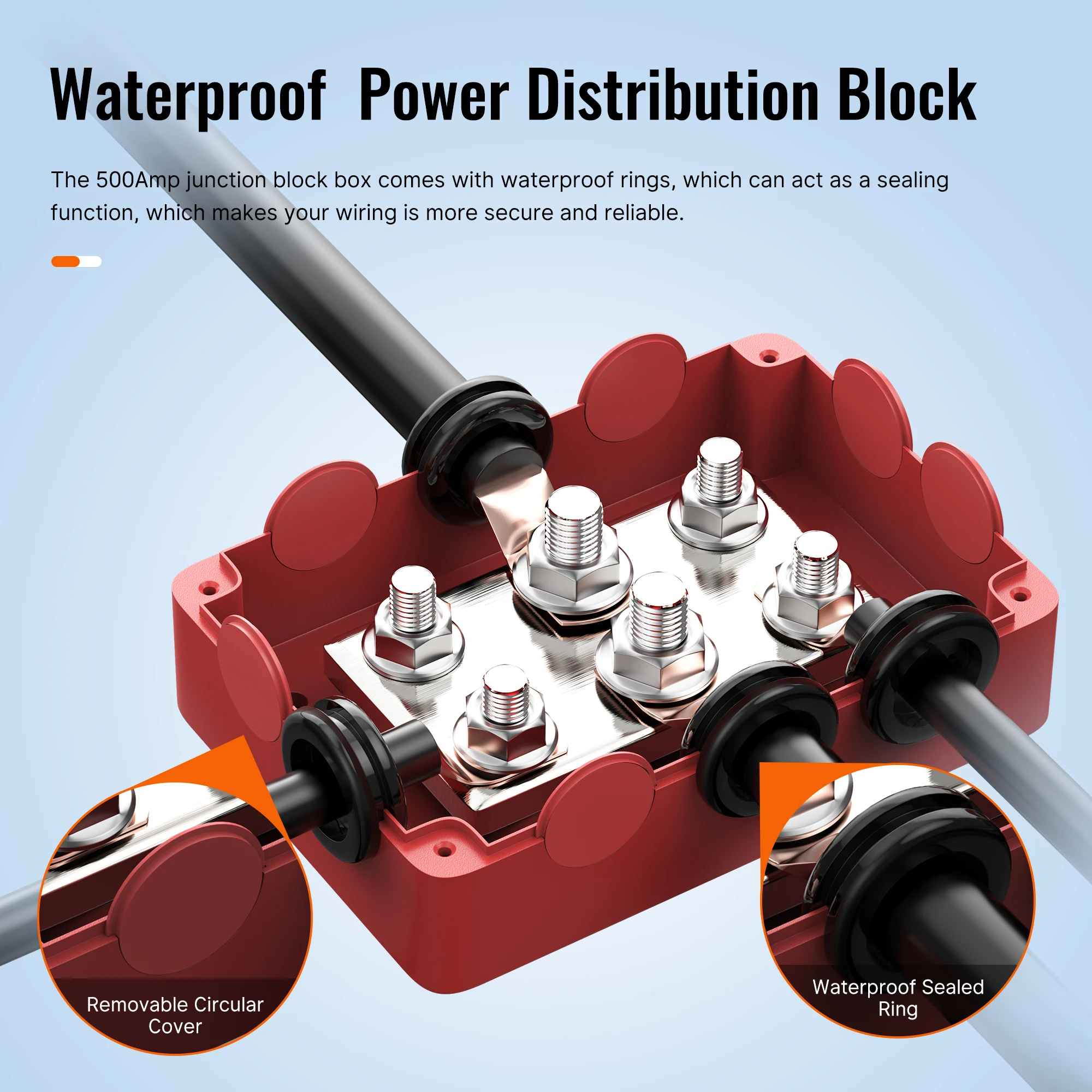

* Waterproof - The 500 amp copper battery bus bar comes with waterproof rings, which can act as a sealing function, so it makes your wiring more secure and reliable. This set of red and black busbar also comes with removable plates, it let the wires&terminals go through very easy and prevent short circuit.
* Wide Application - The 500A Heavy Duty Power Distribution Block makes the wiring of circuit become neat and tidy and prevent electric short circuit, suitable for automotive, car, truck, marine, boat, RV, Solar, etc.
More Products

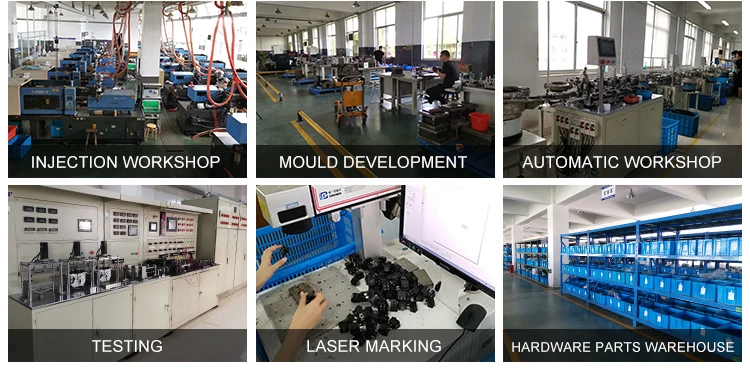

WORK SHOP
