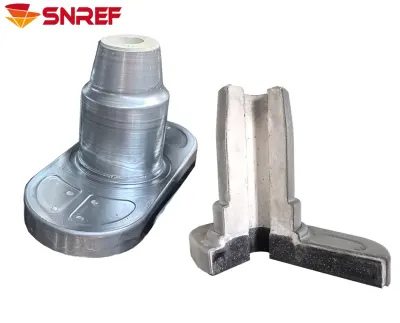

Refractory Slide Gate Plate 6300 for Steel Making
Shand
AI CS
已收藏
点击收藏
Share
Alumina Carbon Refractory Ladle Sliding Gates Plate
Flocon 4200 Ladle Refractory Slide Gate Plate for Continuous Casting
Product Description
SINOREFRACTORY / SNREF sliding gate plate & ladle nozzle & collector nozzle -ladle refractories sets
Ladle slide gate plate refractory brick can be preinstalled / pre-assembly with nozzle according to your metallurgy steel making condition and demands.
Slide gate plate is the key part in the slide gate systems.
Function is to control the flow rate of molten steel.
The slide plate is exposed to high temperature molten steel repeatedly, especially the cast hole part, the erosion is serious, this require the slide plates obtaining features of High strength, excellent corrosion resistance, anti-stripping, to ensure no steel leak during pouring process.
The features of SINOREFRACTORY Slide gate plates:
1. Flatness of sliding surface ≤0.05mm
2. High mechanical strength
3. High resistance to contamination of molten steel and slag
4. Excellent oxidation resistance
5. Good thermal shock stability
Detailed Photos
Packaging & Shipping
Product Parameters
| Product Name | A.P.P | B.D. | C.C.S | MgO | Al2O3 | C |
| 4200 upper slide gate plate | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
| 4200 lower slide plate and nozzle | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
| 4200 upper nozzle | ≤8 % | ≥2.95 g/cm3 | ≥70MPa | ≥83% | ≤12% | ≥0.5% |
| Al-Zr-C Material | |||||
| Al2O3(≥%) | ZrO2(≥%) | C(≥%) | A.P.P(≤%) | B.D(≥g/cm3) | C.C.S(≥Mpa) |
| 85 | 5 | 3 | 8 | 3.1 | 120 |
| Al-C Material | ||||
| Al2O3(≥%) | C(≥%) | A.P.P(≤%) | B.D(≥g/cm3) | C.C.S( Mpa) |
| 90 | 3 | 9 | 3.0 | 120 |
Company Profile
Shandong Sinorefractory New Materials Co.,Ltd (SinoRefractory)has been focusing on international marketing of flow control refractories in iron and steel industry for 17 years.
SinoRefractory is the second generation of refractories export enterprise developed out of EMEI Group.Supported by one of China's largest production bases in functional refractory materials.
Through years of development in the field of exporting top quality refractories to worldwide markets,SinoRefractory aims at researching,producing,marketing and exporting high standard Ladle slide gate plate,Ladle Nozzles,Well blocks,Purging plugs,Nozzle stuffing sand,Refractory castables, Slide gate Mechanisms etc.
Up to now,SinoRefractory has supplied high quality refractory products and services to nearly 70 top-hundred global steel enterprises.
SinoRefractory will always put clients'interest in the first place,striving to provide a wide range of services,including technical solution,pre-sales support,after-sales services,installation team support,professional know-how according to the changing of steelmaking condition,etc.
We are not only selling products,we are more focused on supporting,developing and growing together with clients.
FAQ
Below are some FAQ and answers about ladle and tundish flow control refractories:
Q: What are the requirements for refractories for ladle?
A: The requirements of refractories for ladle mainly include:
* high temperature resistance
* thermal shock resistance
* resistance to the erosion of the slag
* high temperature with sufficient mechanical strength
* the lining has a certain degree of expansion
Q:What are the reasons for the destruction of refractories for ladle?
A: The main causes of damage are as follows:
When the ladle transports high-temperature molten steel, the high-temperature molten steel and slag at about 1680ºC scour and erode it, especially in the slag line part, the scouring and erosion is more serious, and it is an important factor to decide the service life of the ladle.
LF and other extra-oven refining treatment on the unburnt brick damage is serious.
Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Q:What steel grades are different materials of slide plate bricks suitable for respectively?
A: Different materials of slide plate bricks are applicable to different steel grades. For example,
Al2O3-ZrO2-C slide gate plate can be used as ladle sliding gate plate due to its excellent erosion resistance and thermal shock stability, which can adapt to the casting of various steel grades, and ther are the following materilas based on customer's steel making condition: the MgO-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, MgO-Al-C, and so on.
For more details, feel free to send inquiry to us.
Refractory Slide Gate Plate 6300 for Steel Making
$ 25.00 $ 30.00
